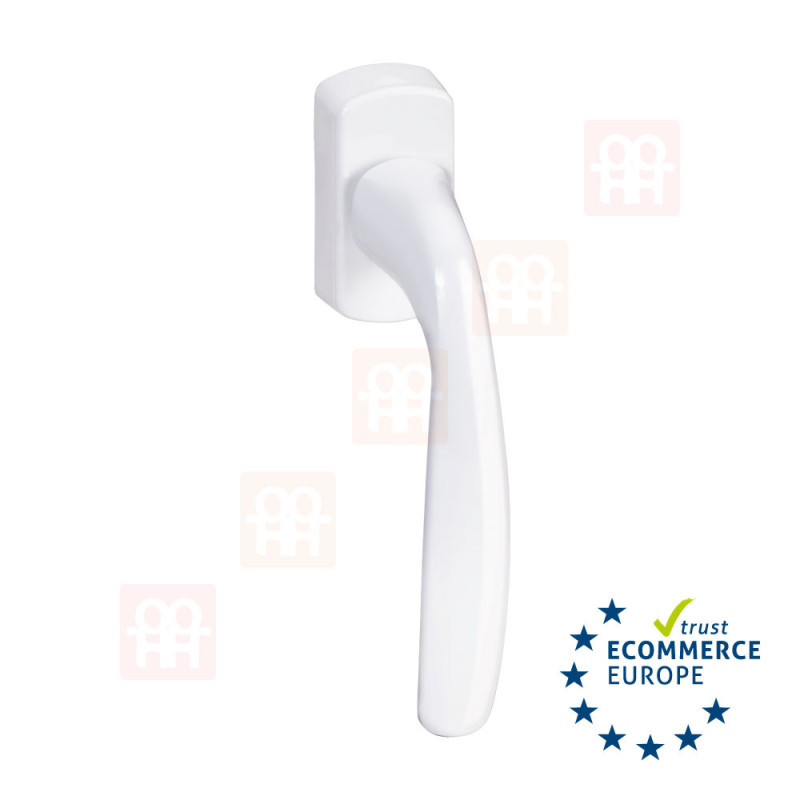

ROTO SWING design handle with SECUSTIK function, manufactured exclusively for ROTO by HOPPE.
Fixing screws are included. Thelength of the mandrel is 37mm (can be used for all common plastic, aluminium and EURO windows and balcony doors).
HOPPE Secustik handle with variable spindle length (32 - 42mm) for 99% of windows and balcony doors (PVC, EURO. aluminium) There are a large number of profile systems for aluminium, wood and plastic windows that must meet not only energy saving and security considerations, but also design requirements. These systems require suitable quadrants of different lengths.
Only one window handle for almost all window profiles.
Thanks to the VarioFit® technology for window handles, one handle can be used for different window profiles. The HOPPE VarioFit® window handle is length-adjustable to the specific depth of the window profile. This is made possible by a compression spring that is placed inside the window handle, where it acts on the square corner. Through the spring mechanism, the square is continuously pushed into the square hole of the window fitting's gear pinion, ensuring a precise fit. The window handle bridges differences in installation depth of up to 10 mm and can therefore be fitted to windows with different profile cross-sections. The integrated Secustik® technology makes it difficult to over-rotate the square and thus to shift the window's span from the outside. Of course, the VarioFit® window handle is also RAL tested.
An overview of the special features of the Secustik® window handle with VarioFit® technology: Flexible fitting on windows with different profile depths thanks to integrated compression springs in the handle neck. Patented stepless adjustment of the quadrant length according to the respective window profile depth. Variable length 10 mm (spindle length 32 - 42 mm) Patented closing mechanism in the window handle thanks to the proven Secustik® technology. 10-year guarantee of mechanical functionality. Brand quality tested by RAL standard. Side locking with precise positioning (45°). Self-locking against unauthorised movement of the window fitting and rotation of the square from the outside, including screws.
Treat yourself to a safe home!
The Secustik® system is patent protected, especially for its unique locking mechanism as an integrated safety guarantee. This mechanism prevents unauthorised movement of the window hardware from the outside.
The connecting element between the handle and the square acts as a "mechanical diode". While this allows normal operation of the window handle from the inside, it blocks the handle in case someone tries to tamper with the window handle from the outside using the hardware. In this way, Secustik® window handles meet strict safety requirements. The uniqueness of a window handle is recognised when you turn it. When the Secustik® handle is turned 180° (from the closed position to the tilt position), the locking mechanism engages in special grooves with an audible click. This is a clearly audible guarantee for the safety of your windows.
Watch the video to see how the window handle works:
Výměna kliky u okna či balkónových dveří je velmi snadná. Jediným potřebným nástrojem je šroubovák. Během několika minut můžete své okno zabezpečit jak před nezvanými návštěvníky zvenčí, tak udělat domov bezpečnější pro své děti. Z naší nabídky klik pro okna a dveře si určitě vyberete tu správnou KLIKU.
